ELECTRIC DIESEL PUMPS

GESPASA IRON-50 12 or 24 VDC

50 l/min Self-priming battery pump for transferring diesel

Technical data

• Free flow: 50 l/min
• Motor: 0.30 kW
• Consumption: 12 VDC: 18-24 A · 24 VDC: 9-17 A
• Operation: S2 60′
• Motor speed: 3,000 rpm
• Protection: IP-55
• Pressure:  1.2 bar
• Max. suction length:  2.7 m
• Priming pipe suction: 5 m
• Ambient Temperature: -20 ºC / +50 ºC
• Connection: F1″ BSP flanges and threads

Ready to Pump? Grab a diesel nozzle.

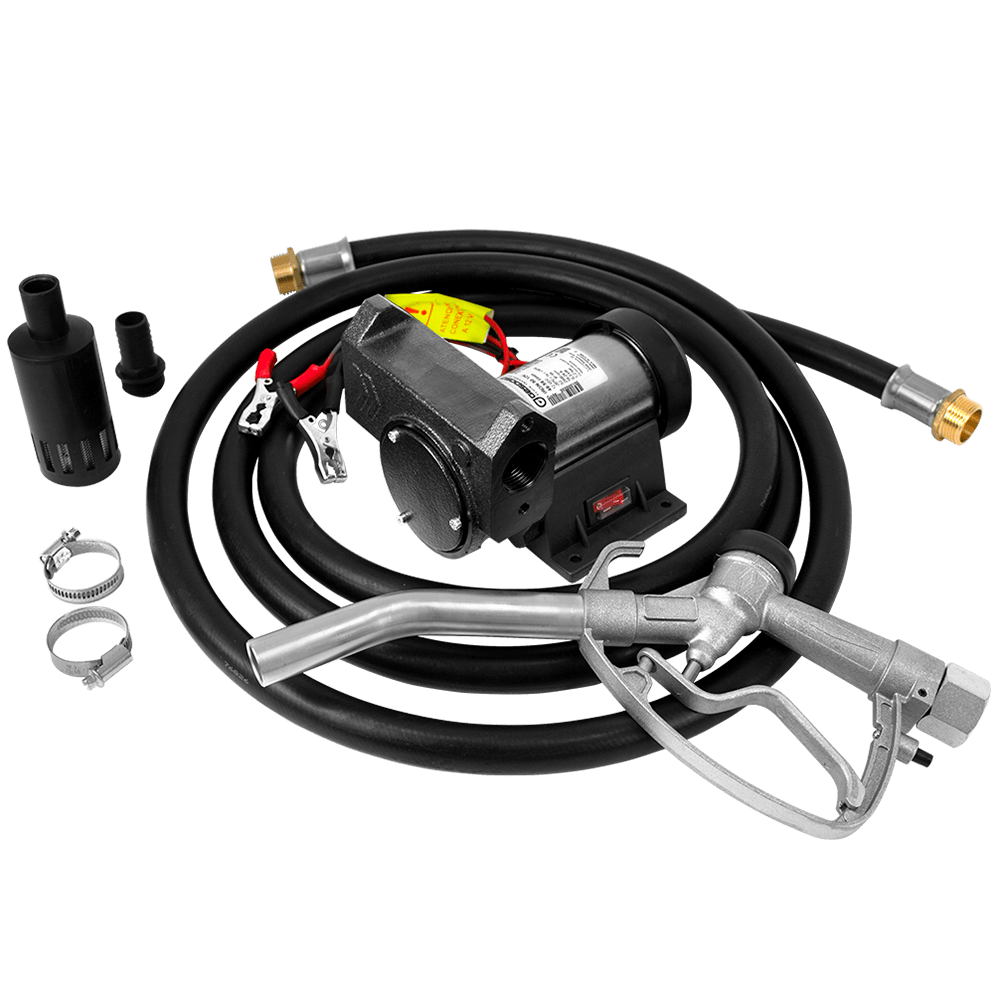

GESPASA DIESEL BATTERY KIT

12 or 24 VDC 50 l/min

• IRON-50 12 or 24 VDC pump
• PSF-040 · Manual aluminium nozzle with F1″ swivel and curved end
• 4 m antistatic delivery hose Ø19 mm double layer, special for diesel, with adapters in both ends
• PP Lower filter with STAINLESS mesh
• 2 x 25×40 mm brackets
• 1″ PP adapter

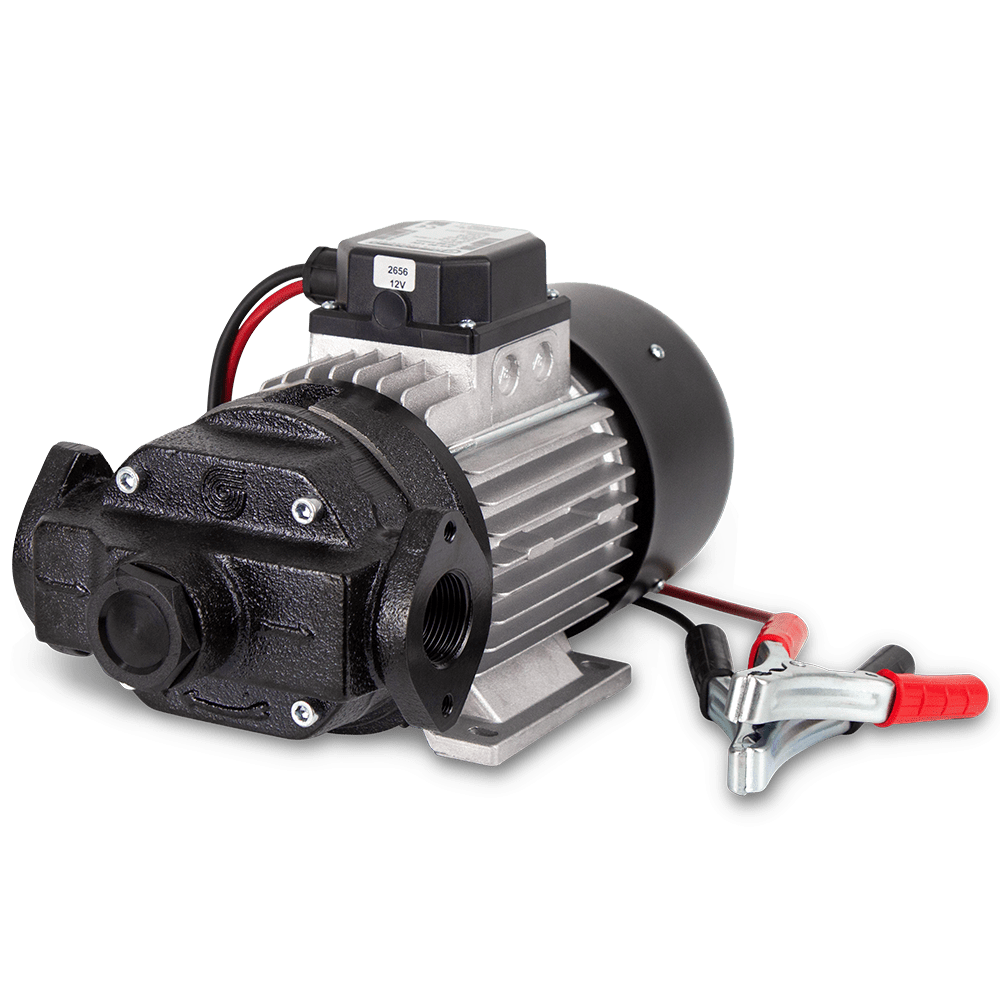

GESPASA AG-90 12 or 24 VDC

Technical data

• Free flow: 70-80 l/min
• Motor: 0.37 kW
• Consumption: 12 VDC: 35-53 A · 24 VDC: 25-35 A
• Operation: S1
• Motor speed: 1,500 rpm
• Protection: IP-55
• Pressure: 1.4 bar
• Max. suction length: 2.7 m
• Priming pipe suction: 5 m
• Ambient Temperature: -20 ºC / +50 ºC
• Connection: F1″ BSP flanges and threads

Ready to Pump? Grab a diesel nozzle.

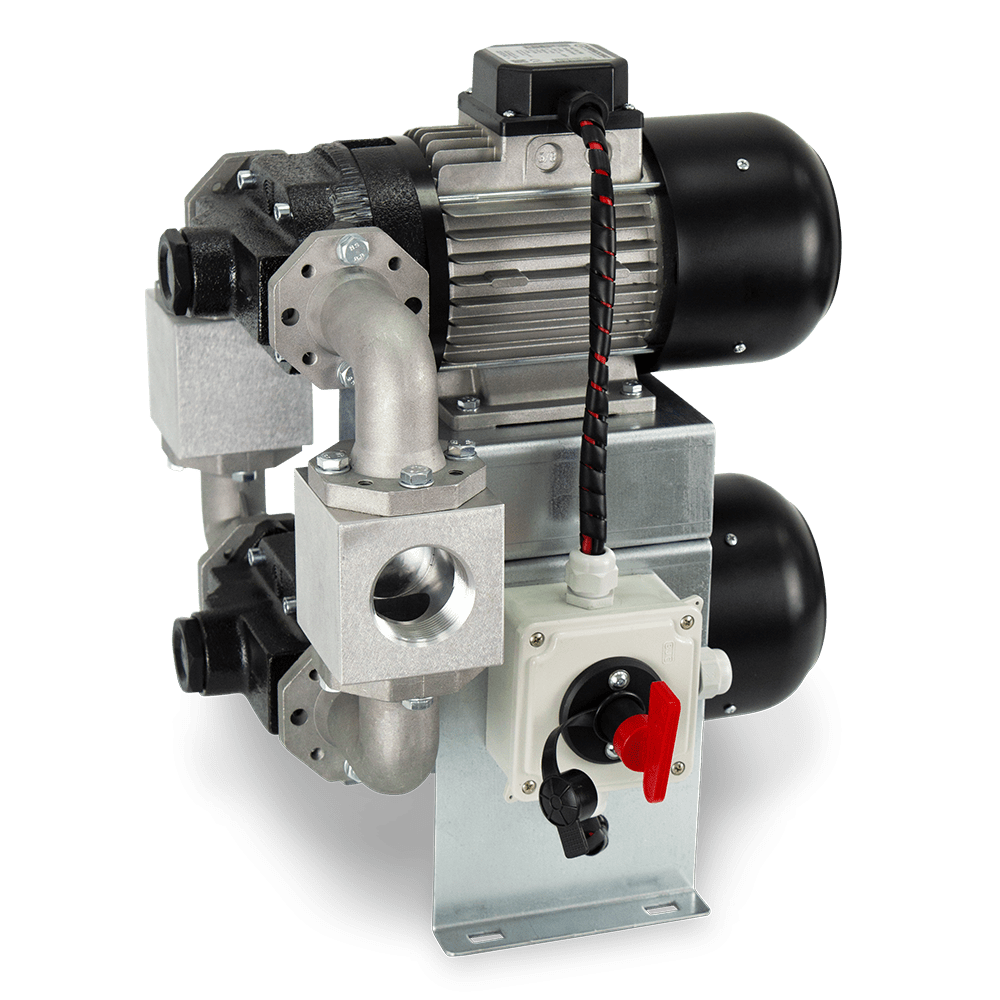

GESPASA MONSTERPUMP-200 24 VDC

Technical data

• Flow: 200 l/min
• Motor: 2 x 0.37 kW
• Consumption: 30-47 A
• Operation: S1 continuous
• Motor speed: 1,500 rpm
• Protection: IP-55
• Pressure: 1.4 bar
• Max. suction length: 2.7 m
• Priming pipe suction: 5 m
• Ambient Temperature: -10 ºC / +50 ºC
• Connection: F1 ½” BSP threads

Ready to Pump? Grab a diesel nozzle.

PIUSI VISCOMAT VANE

Viscomat Vane is an diesel transfer pump, available in the Viscomat Vane 70 and Viscomat Vane 90 versions. The available AC version is suitable for all those applications where it is necessary to apply a transfer system with high suction capacity in order to transfer fluids with medium-high viscosity.

Ready to Pump? Grab a diesel nozzle.
