ELECTRIC OIL PUMPS

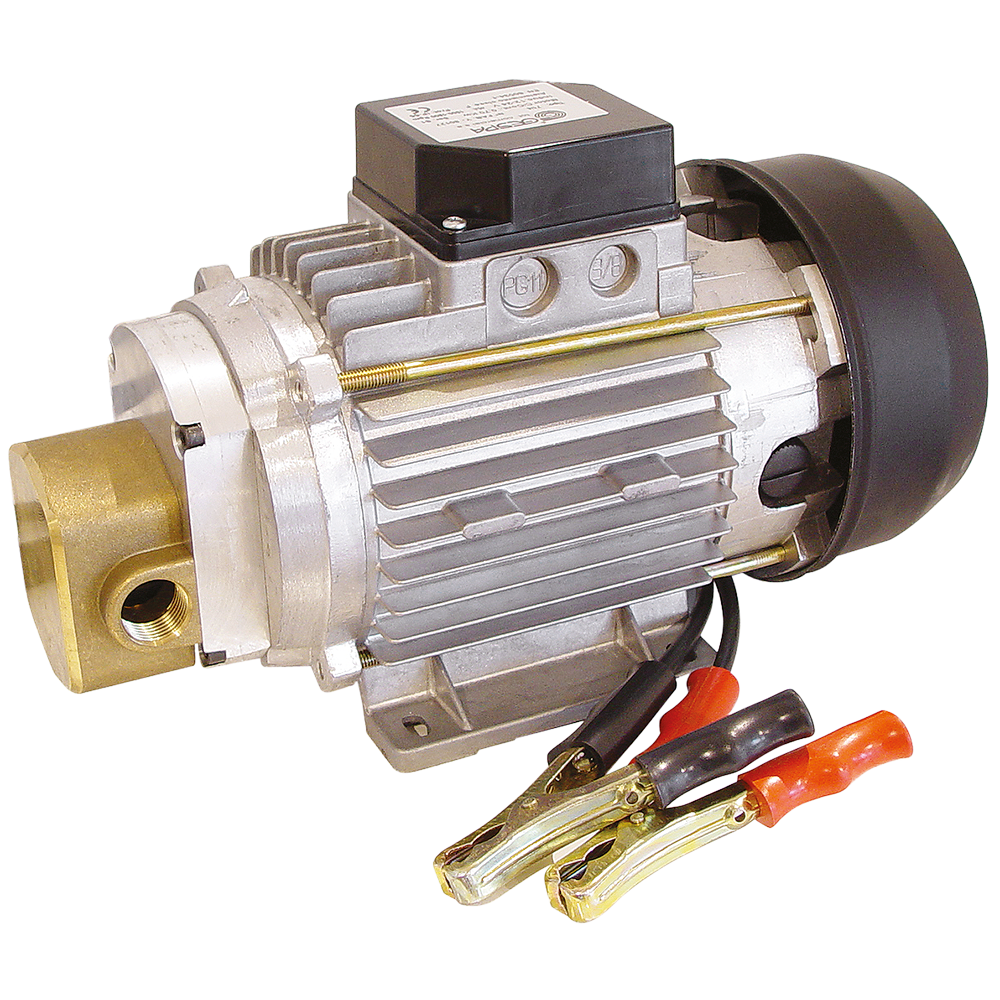

GESPASA EA-90 OIL PUMP 12 or 24 VDC

Technical data:

• With recirculation bypass system
• It is suitable for lubricant transfer with average/low density
• Suction: 2.5 m · Delivery: 40 m
• Flow: 20-25 l/min (SAE-20/50W at 25ºC)
• Motor: 0.37 kW self-ventilated 12 or 24 VDC
• S1 continuous duty
• IP-55 protection
• Consumption: 35-55 A (12 VDC) and 20-32 A (24 VDC)
• 1,500 rpm
• Bypass tared at 5-6 bar
• Inlet/outlet tube: 1/2″ GAS (BSP)
• With clamps for 12 or 24 VDC battery connection with 2 m of cable

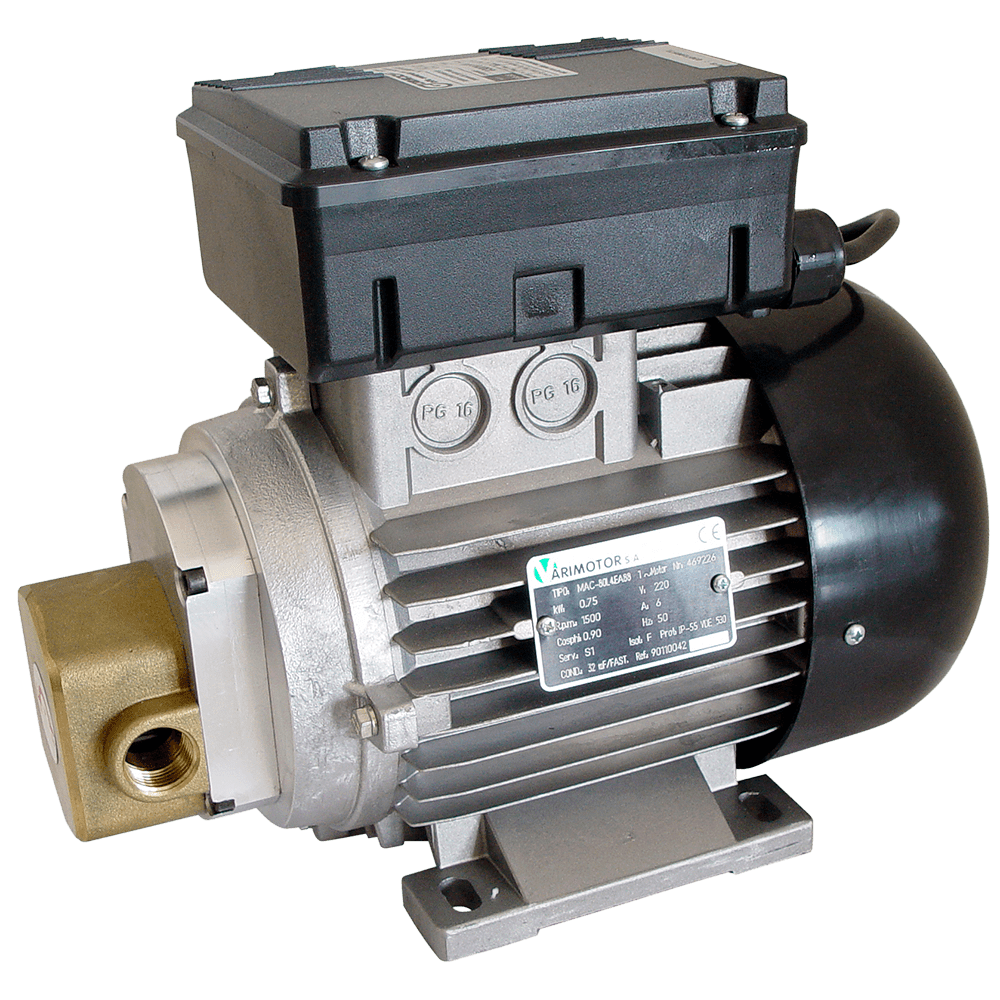

GESPASA EA-88 OIL PUMP

Technical data:

• With recirculation bypass system
• It is suitable for lubricant of maximum viscosity 350 cSt
• Suction: 2.5 m · Delivery: 40 m
• Flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
• Motor: 0.74 kW self-ventilated 230 VAC 50/60 Hz single-phase
• IP-55 protection
• With thermal protector
• Consumption: 4-6 A
• 1,500 rpm
• Bypass pressure: 9-10 bar
• Inlet / outlet tube: 1/2″ GAS (BSP)
• ON/OFF Switch
• 3 m 230 VAC connection cable with injected plug

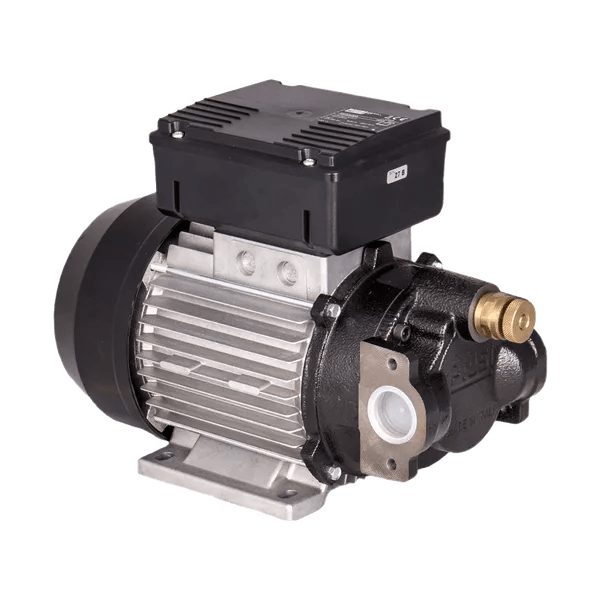

PIUSI VISCOMAT VANE

Viscomat Vane is an oil transfer pump, available in the Viscomat Vane 70 and Viscomat Vane 90 versions. The available AC version is suitable for all those applications where it is necessary to apply a transfer system with high suction capacity in order to transfer fluids with medium-high viscosity.

PIUSI VISCOMAT GEAR

Viscomat Gear is an oil transfer pump, available in the single-phase and three-phase versions.
The available versions are suitable for all those applications requiring an oil transfer pump with high suction capacity in order to transfer fluids with medium-high viscosity.
